Loading Hooks

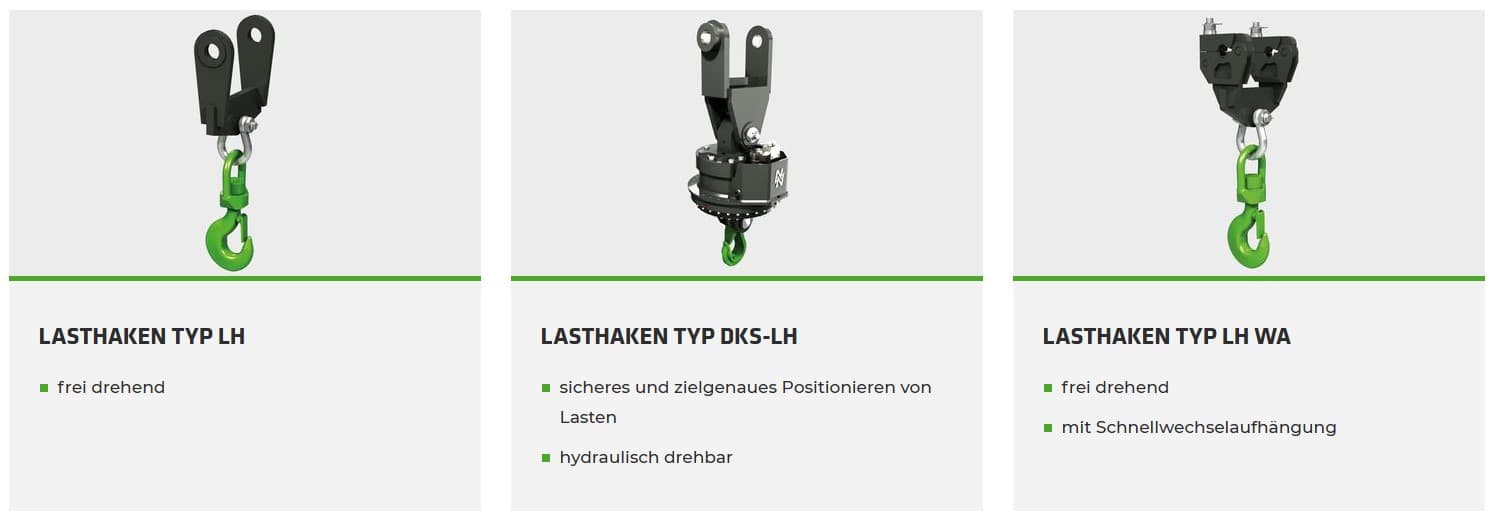

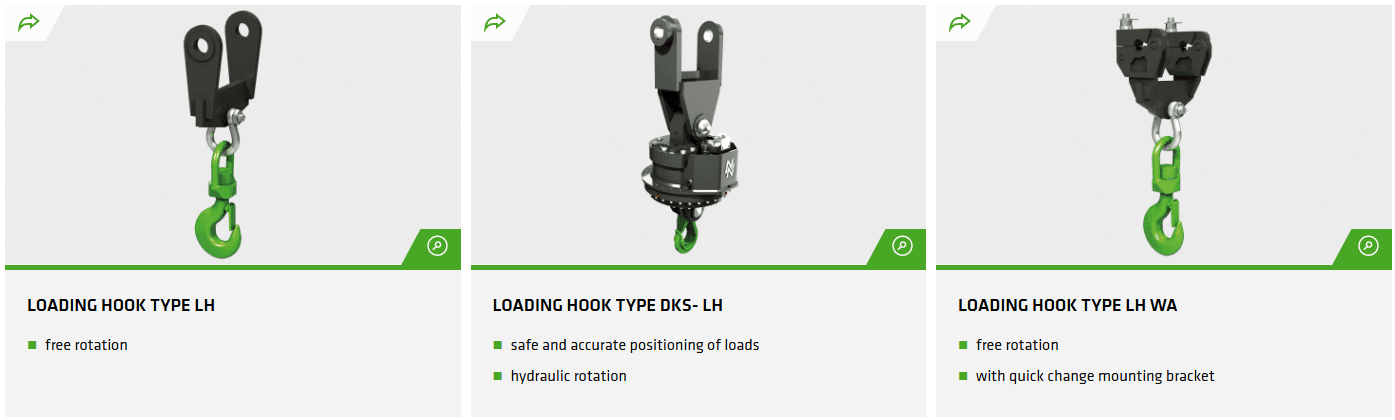

Loading Hooks Type LH

Model	Load capacity	Weight	Height	Label	No.	Thumbnail
830, 835, 840, 850, 855	12500 kg	72 kg	830 mm		197740
860, 870	30000 kg	194 kg	1220 mm		199049

Loading Hooks Type LH WA

Model	Load capacity	Weight	Height	Label	No.	Thumbnail
821, 825, 830, 835, 840, 850	8000 kg	93 kg	750 mm		197738
860, 870	20000 kg	233 kg	1050 mm		197741

Loading Hooks Type DKS-LH

Model	Load capacity	Weight	Height	Label	No.	Thumbnail
860, 870	20000 kg	550 kg	980 mm		234986
821, 825, 830, 835, 840	8000 kg	270 kg	640 mm		247170
