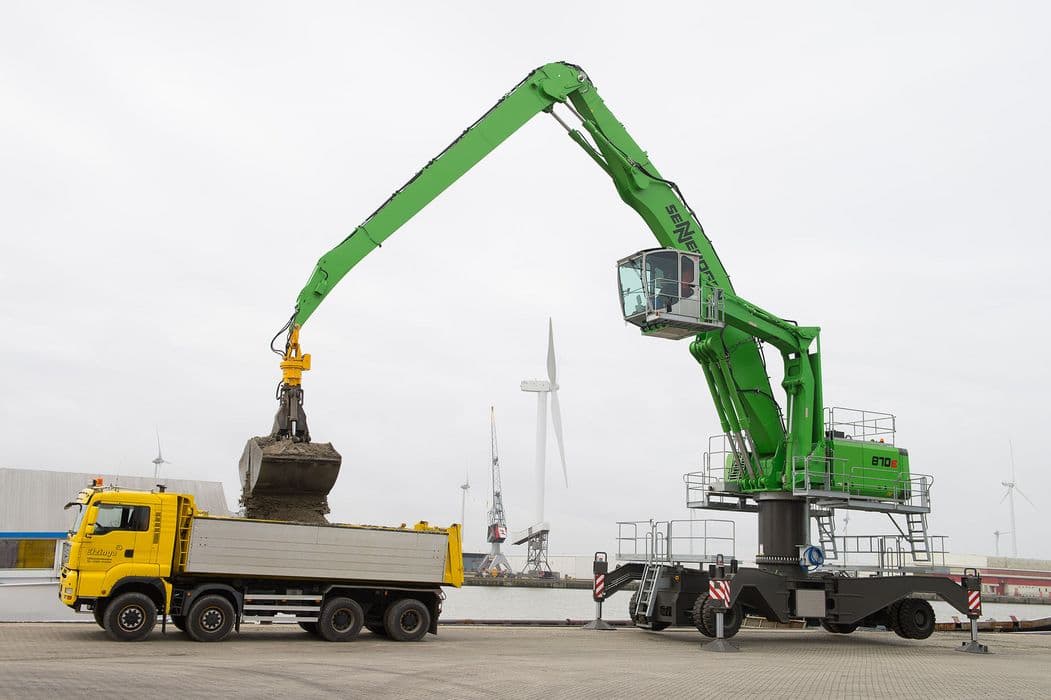

ROBUST CLAMSHELL GRABS FOR MATERIAL HANDLERS
ORIGINAL SENNEBOGEN GENE

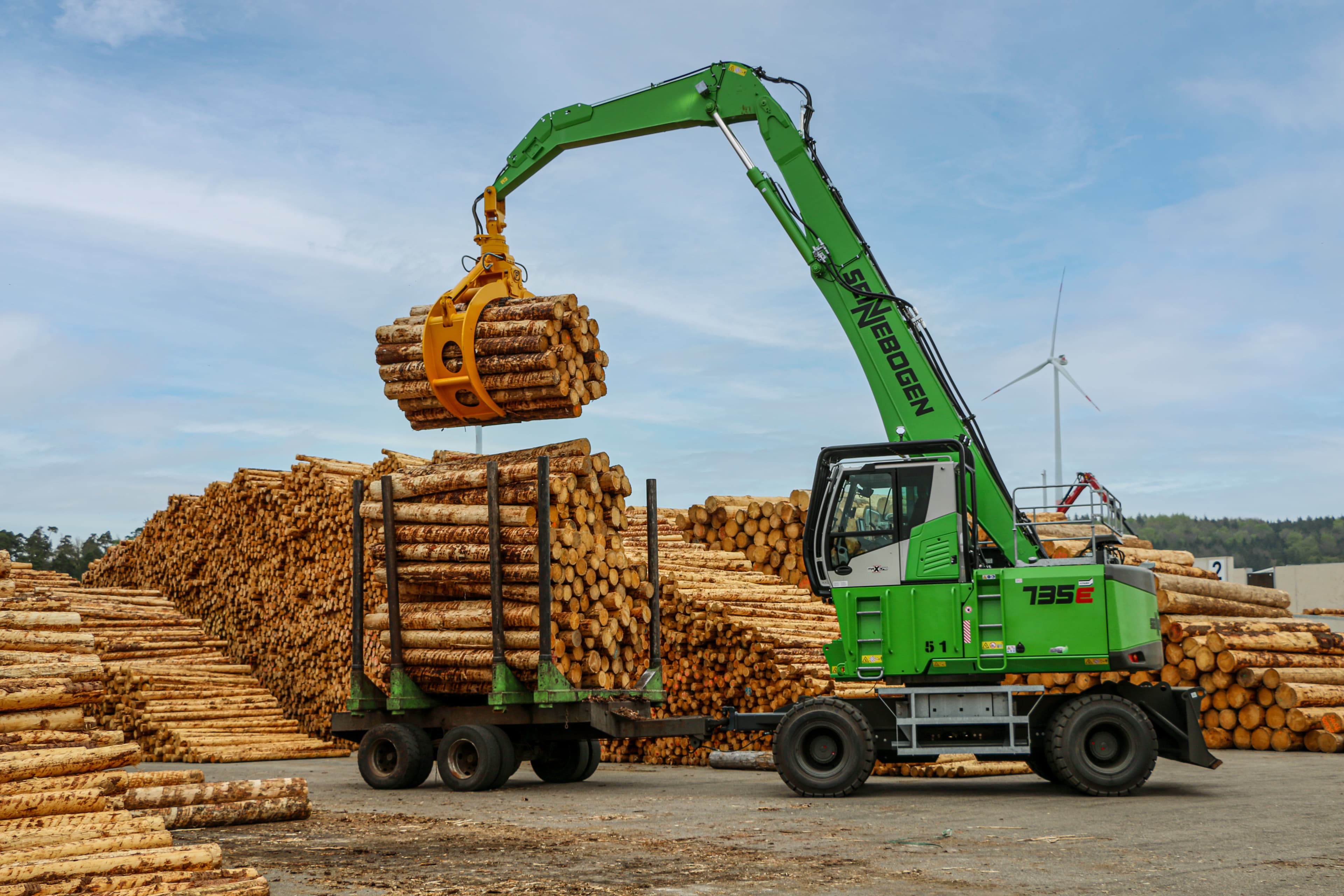

ROBUST & POWERFUL FOR ROUND TIMBER HANDLING

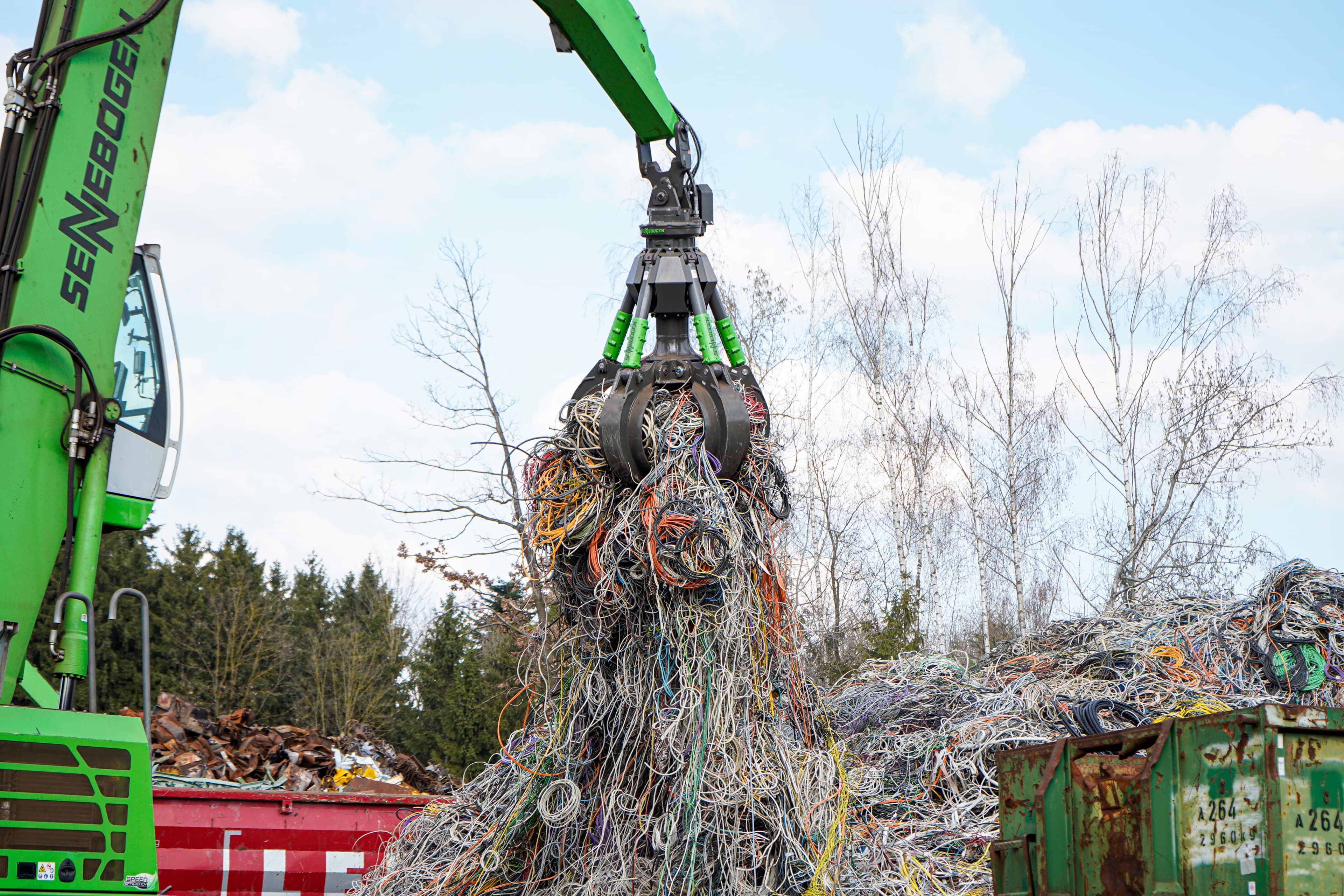

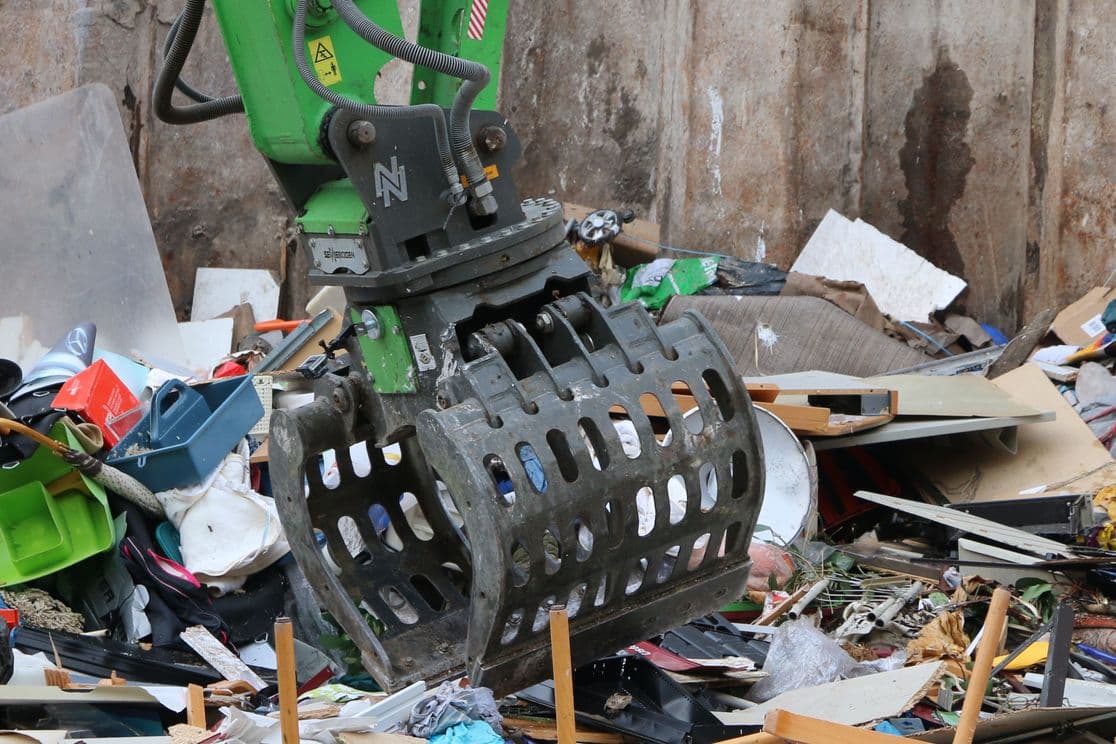

PRECISE & POWERFUL RECYCLING

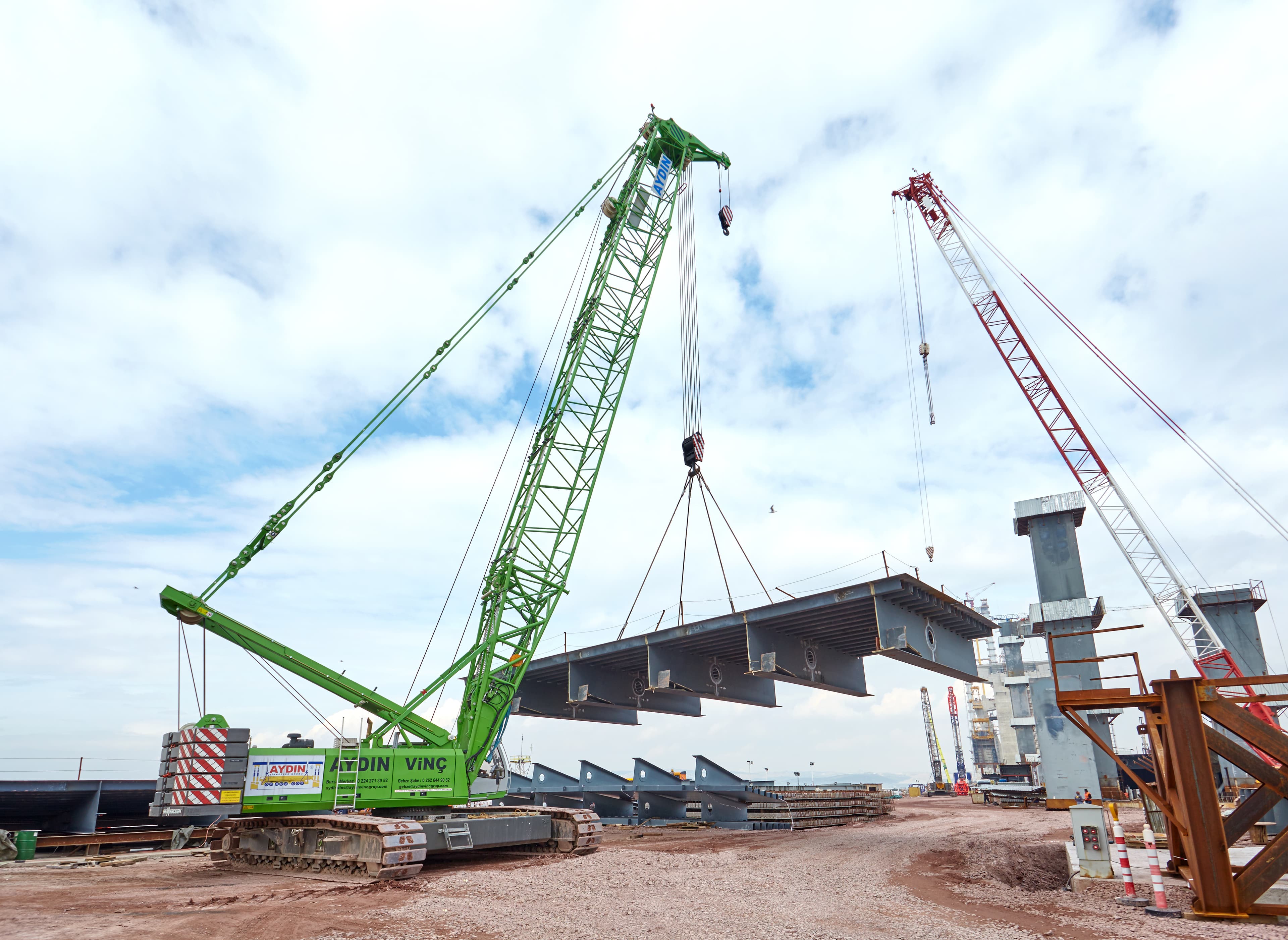

LOAD HOOK FOR MATERIAL HANDLERS

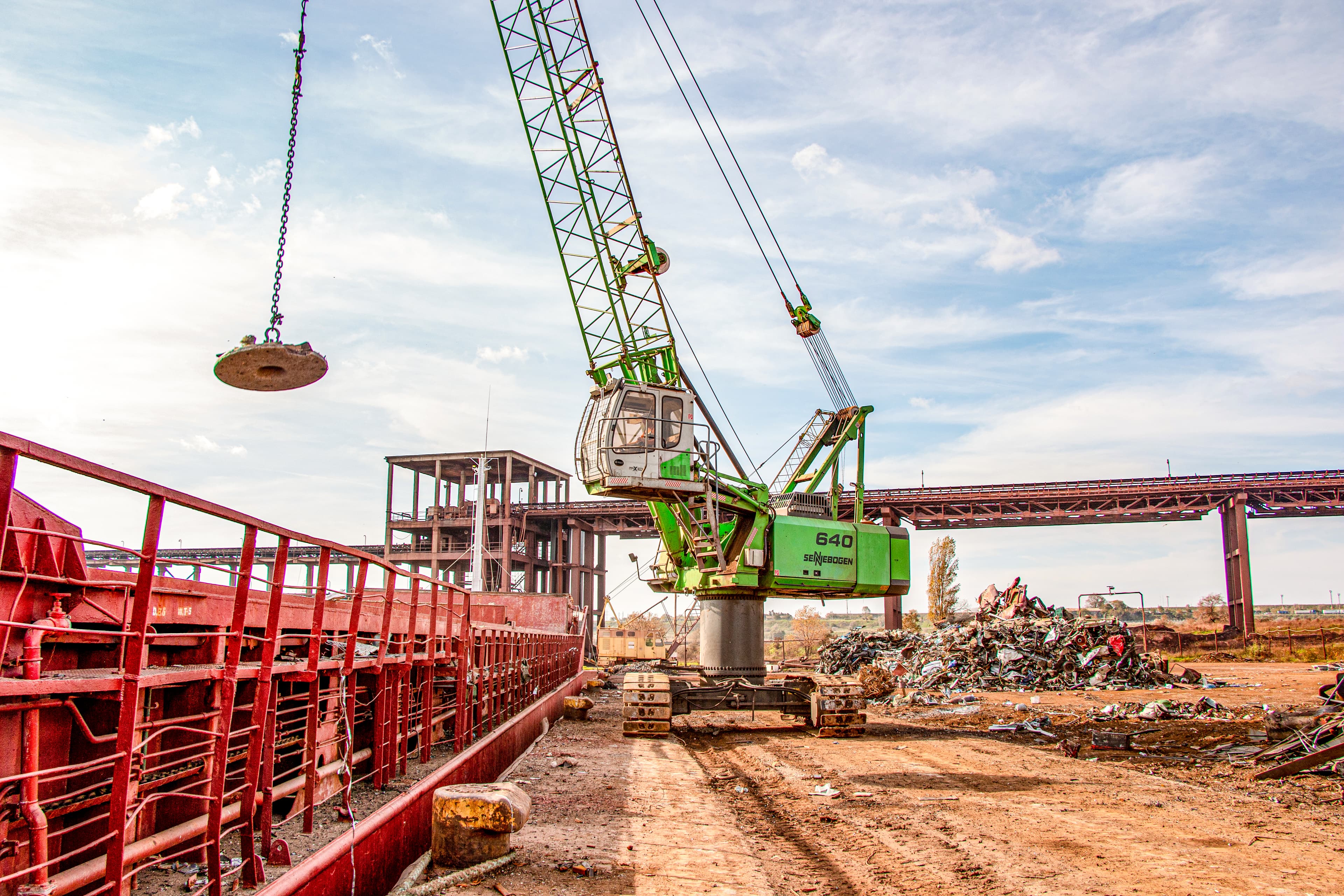

FOR ORANGE PEEL GRAB IN COMBINATION WITH INTERGRATED MAGNET LOCKING DEVICE
CUSTOM-FIT GRIPPER MOUNTING KITS FOR A SECURE CONNECTION AND RELIABLE OPERATION
MECHANICAL QUICK CHANGE GRAB & BOLTS (PINS)

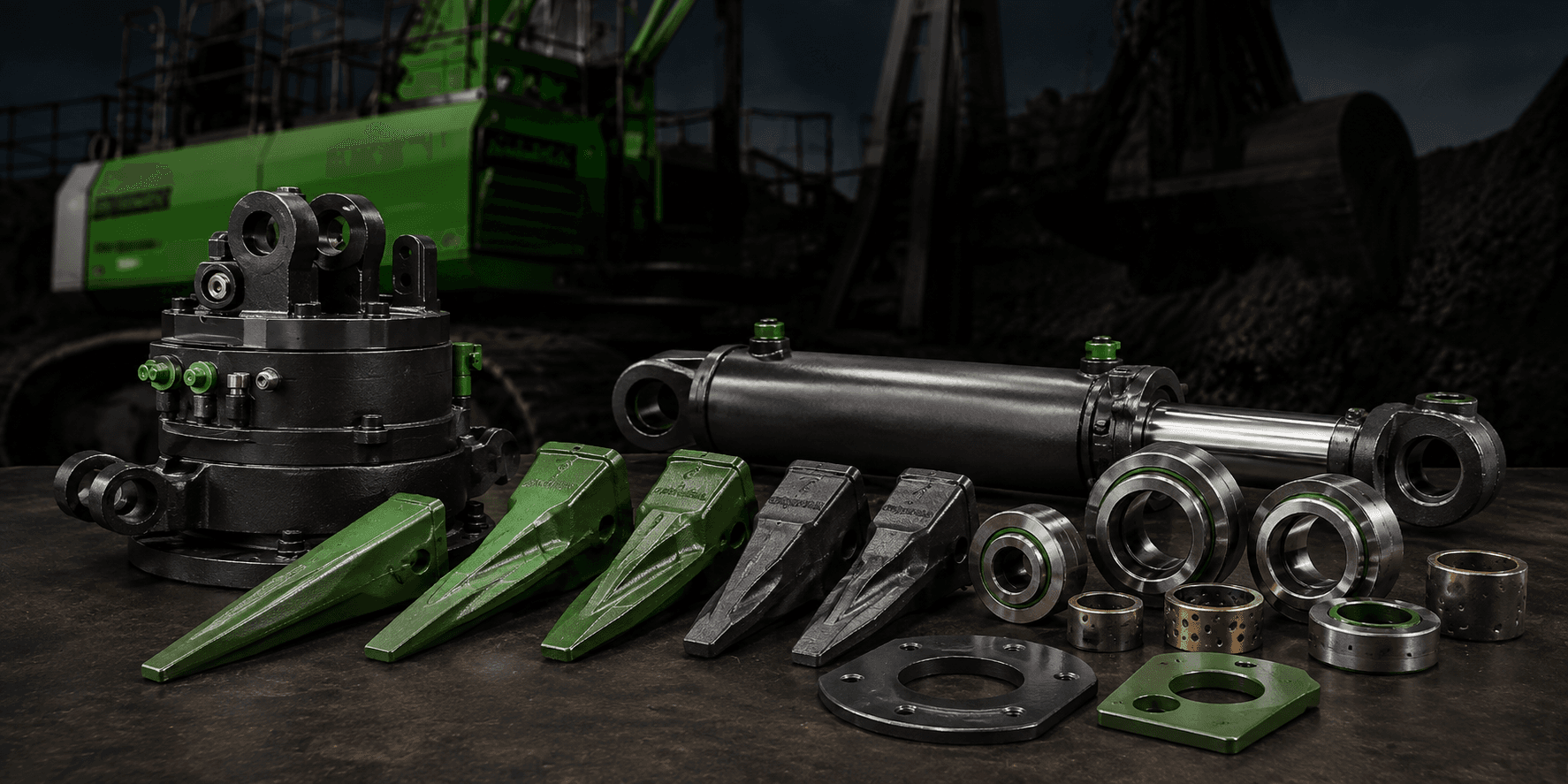

ORIGINAL PARTS FOR LONG SERVICE LIFE AND RELIABLE OPERATION
BUILT FOR HEAVY-DUTY, CONSTANT USE
| Weight | Model | Grab Capacity | Shell | Max. pilled density (t/m3) | Label | No. | Thumbnail |
|---|---|---|---|---|---|---|---|
| 6500 kg | 875, 880 | 5000 l | Standard Shell | 2,6 | SGZ 5000.70 | 168482 |  |
| 7550 kg | 875, 880 | 7000 l | Standard Shell | 2,0 | SGZ 7000.70 | 168484 |  |
| Weight | PLN | Grab Capacity | Rotor | Shell | Label | No. | Thumbnail |
|---|---|---|---|---|---|---|---|
| 1730 kg | 20082 | 600 l | DK20-1 | Half open | MG4.1-600-HO5 | 451972 |  |
| 1790 kg | 20083 | 800 l | DK20-1 | Half open | MG4.1-800-HO5 | 451980 |  |
| Length of Trunk | Weight | Model | Grab Capacity | Shell | Label | No. | Thumbnail |
|---|---|---|---|---|---|---|---|
| 6,0 m | 1165 kg | 723, 818, 821, 825 | 0,8 m2 | Timber Grab SGH | SGH 800.29 | 206332 |  |
| 6,0 m | 1765 kg | 723, 730, 818, 821, 825, 830 | 1 m2 | Timber Grab SGH | SGH 1000.32 | 206338 |  |
| Weight | Model | Grab Capacity | Shell | Label | No. | Thumbnail |
|---|---|---|---|---|---|---|
| 710 kg | 817 | 300 l | Sorting Grab SGR | SGR 800.20-L | 225474 |  |
| 1060 kg | 818, 821 | 520 l | Sorting Grab SGR | SGR 1200.30-L | 226168 |  |
| Weight | Model | Height | Load capacity | No. | Thumbnail |
|---|---|---|---|---|---|
| 93 kg | 821, 825, 830, 835, 840, 850, 855 | 750 mm | 8000 kg | 197738 |  |
| 72 kg | 830, 835, 840, 850, 855 | 830 mm | 12500 kg | 197740 |  |
| Pig iron | Pull-off Strenght | Model | Power | Dead Weight | Cast iron crap | Ingot slap | Short Chips | Solid Scrap | Label | No. | Thumbnail |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 850 | 280 kN | 817, 818, 821, 825, 830 | 8,8 kW | 1310 kg | 650 | 14000 | 340 | 580 | S-RLB 12,5 | 049217 |  |
| 980 | 300 kN | 821, 825, 830, 835, 840 | 10 kW | 1700 kg | 790 | 15000 | 390 | 710 | S-RLB 13,5 | 066927 |  |
| Suspension Gear | Model | Label | No. | Thumbnail |
|---|---|---|---|---|
| SA-2, WA-2, A-1, WA-1 | 723, 730, 735, 817, 818, 821, 822, 824, 825, 826, 830, 835, 840, 850, 855 | Hydraulic hoses set with quick change couplers - Original SENNEBOGEN grab (Quick Change System) | 073813 |  |
| ULM, SGR | 817, 818, 821, 822, 824, 825, 826 | Quick Change System | 163515 |  |
| Model | Grab Compatibility | Grab dimension (d x a) | Stick dimension (d x a) | Label | No. | Thumbnail |
|---|---|---|---|---|---|---|
| Stick bolt standard mounting | 055852 | |||||
| Stick bolt standard mounting | 100685 | |||||
| Grab Compatibility | Rotor Type | Label | No. | Thumbnail |
|---|---|---|---|---|
| , | Bearings | 010112 |  | |
| 615 H1 | Roating head | 074761 |  | |

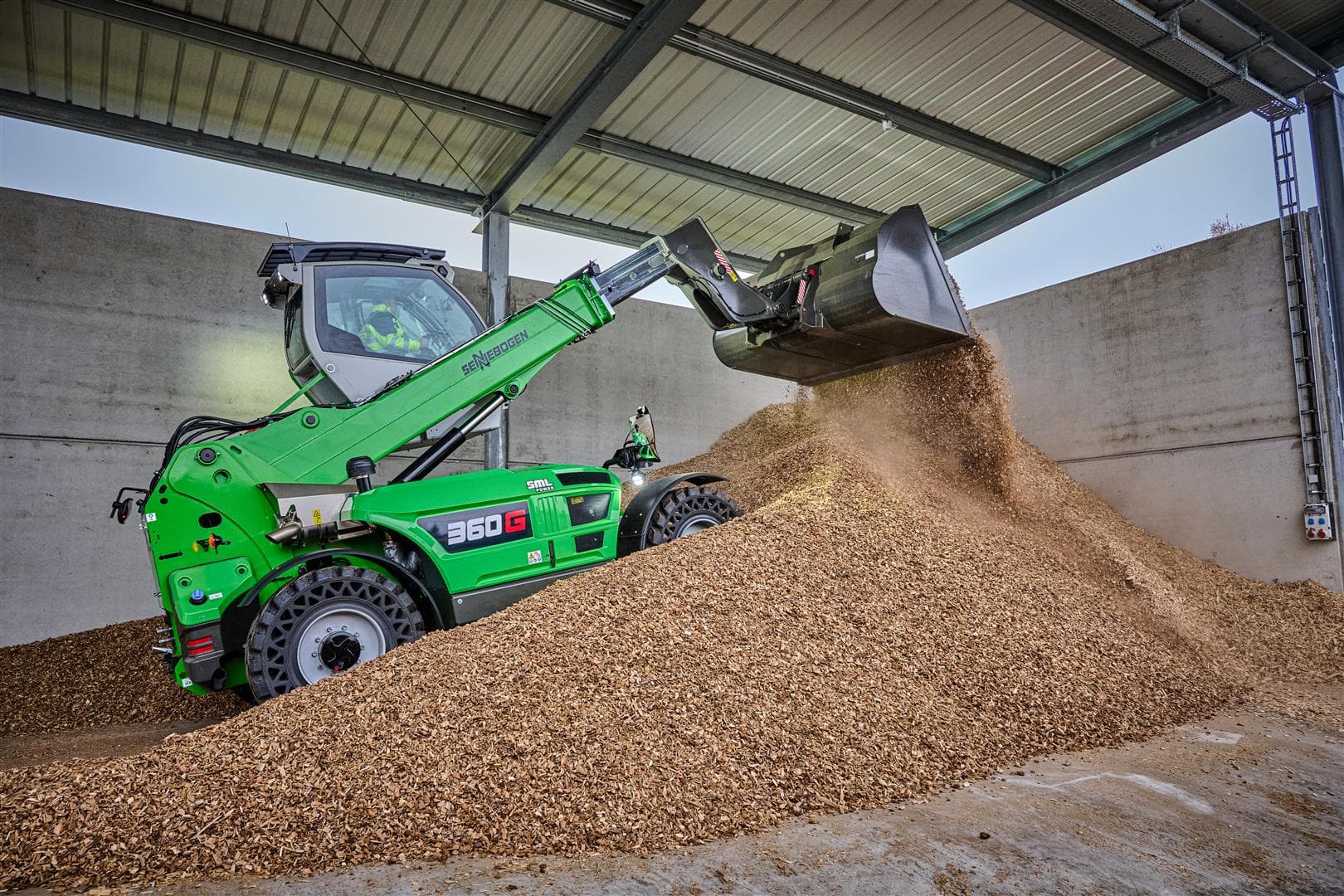

| Model | Label | No. | Thumbnail |
|---|---|---|---|
| 360G, YH60 | Attachment plate, 5500kg capacity - category 4A; RAL 9005 | 283671 |  |
| 360G, YH60 | Attachment plate, 4990kg capacity - category 3B; RAL 9005 | 283755 |  |
